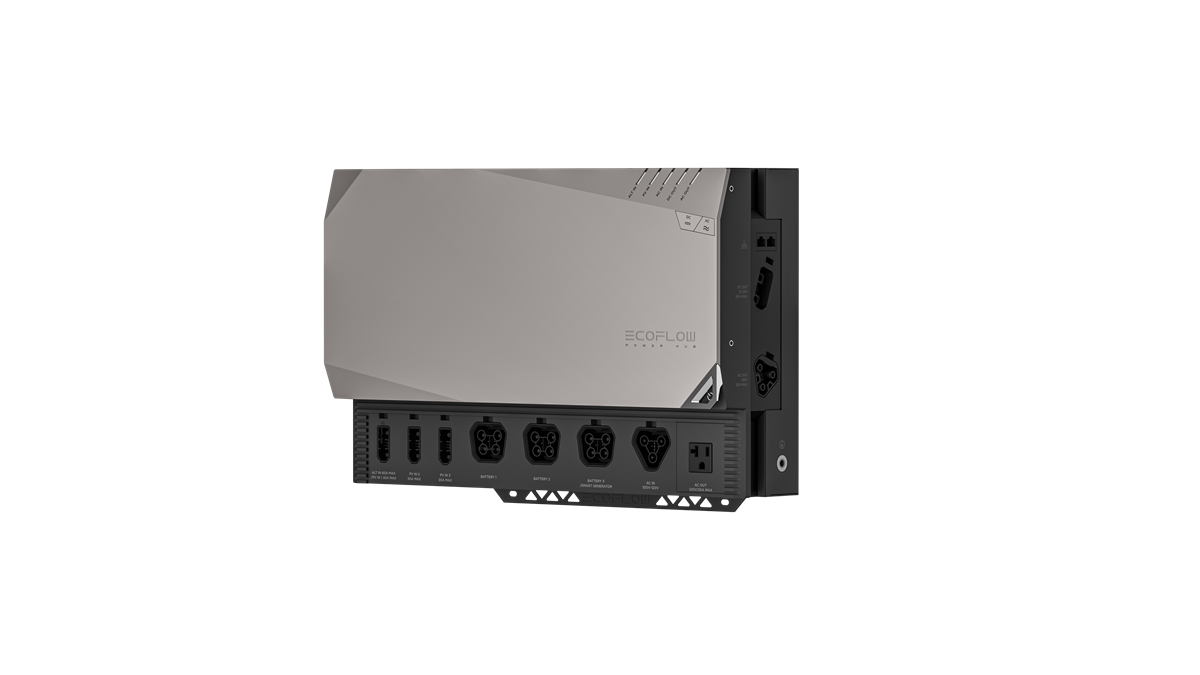

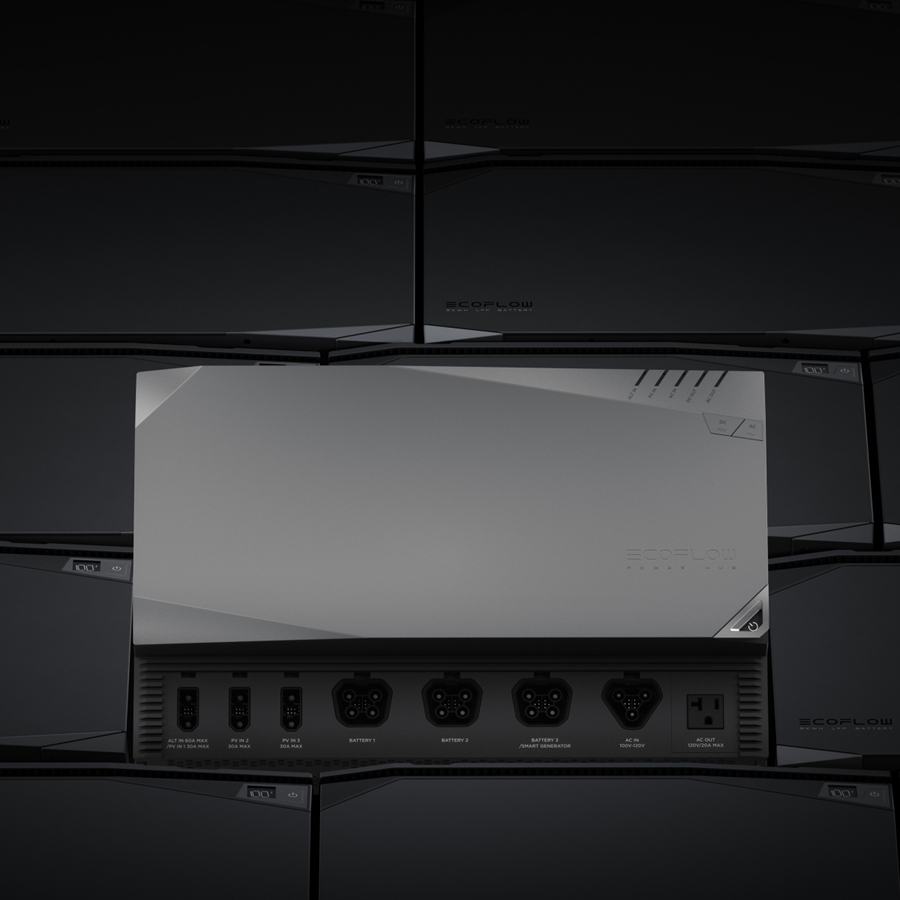

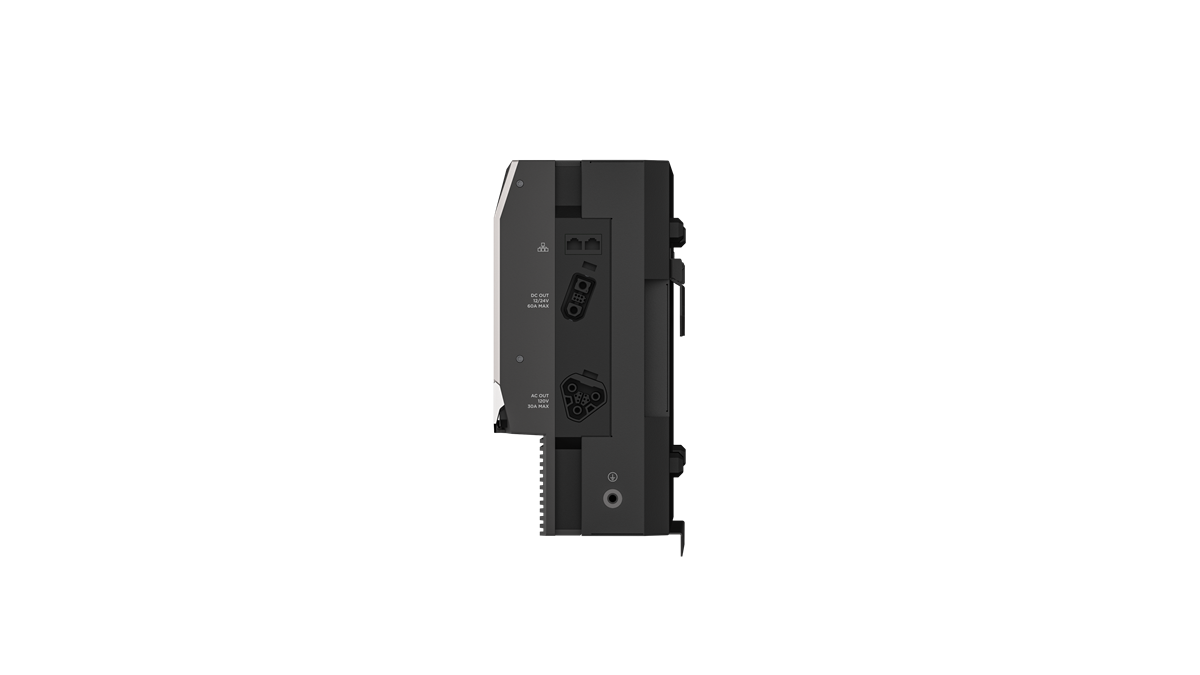

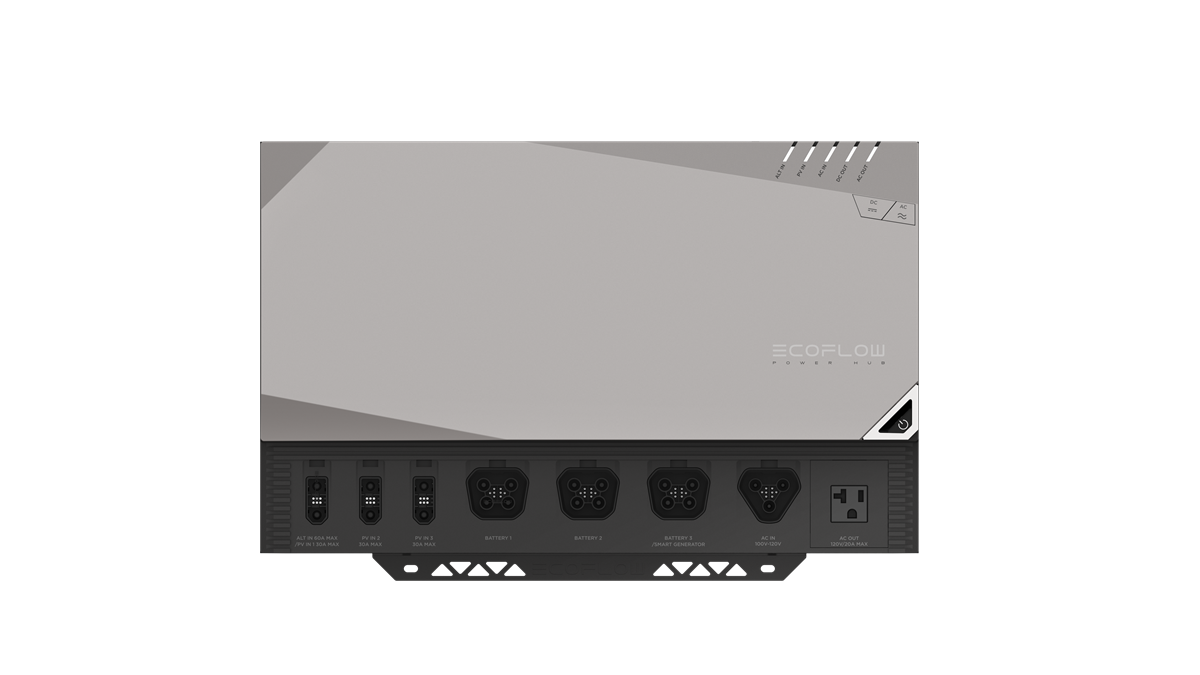

Pure Sine Wave
• DC Main Output: 13.6V 70A or 26.4V 60A
• AC Main Output: 230V 16A, 3600W (7200W Peak) (3000W @
Battery Voltage < 50V)
• Parallel AC Main Output: 230V 32A, 7200W
• Auxiliary AC Outlet: 230V 10A, 2300W
• AC Charge: 176V~265V 13A, Max. 3000W
• 13V~60V 60A, Max. 1000W Alternator Charge
• 15V~150V 30A, Max. 1600W Solar Charge (up to 3 Input Ports
Available, Max. 4800W Solar Input)
• Dimension (HWD): 30cm x 48cm x 14cm
• Operating Temperature: -25°C to 60°C
• Net Weight: 14 Kg
• CE, UL, FCC, UKCA, E-Mark, RCM, TELEC
KCC, ICES, EMC Class A

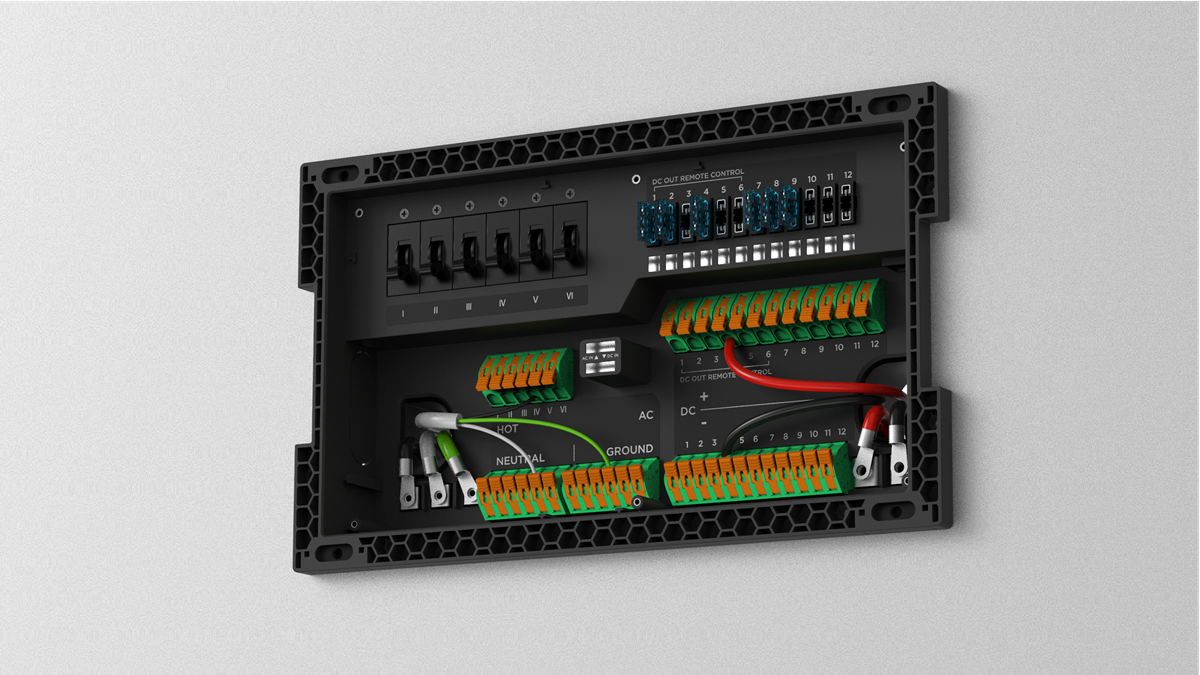

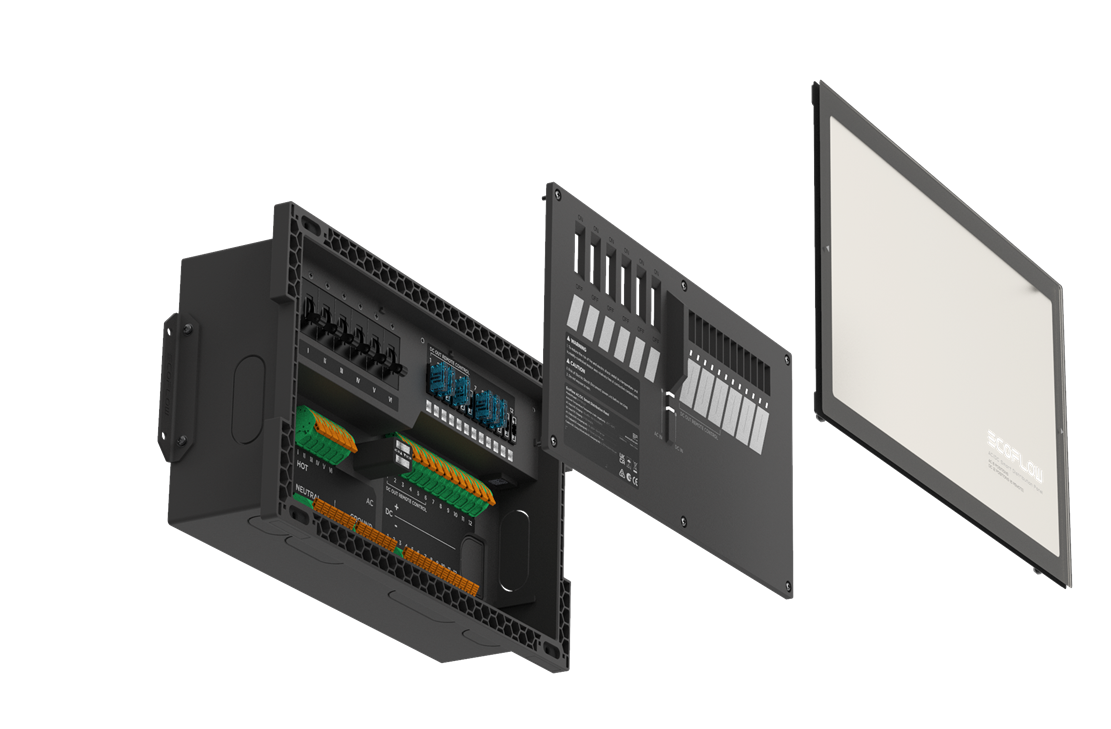

DC Main Input: 13.6V 70A or 26.4V 60A
• AC Main Input: 230V 16A, 3600W
• DC Output: 12 x DC Positions (6 x Remote Controllable Positions via
Power Kit Console or EcoFlow App)
• AC Output: 6 x AC Positions with Built-in 10A Circuit Breakers
• Real-Time AC & DC Output Monitoring (W, V, A)
• Dimension (HWD): 21.1cm x 25.3cm x 9.9cm
• Operating Temperature: -25°C to 60°C
• Net Weight: 2.6Kg
• CE, UL, FCC, UKCA, E-Mark, RCM, TELEC
KCC, ICES, IP21, EMC Class B

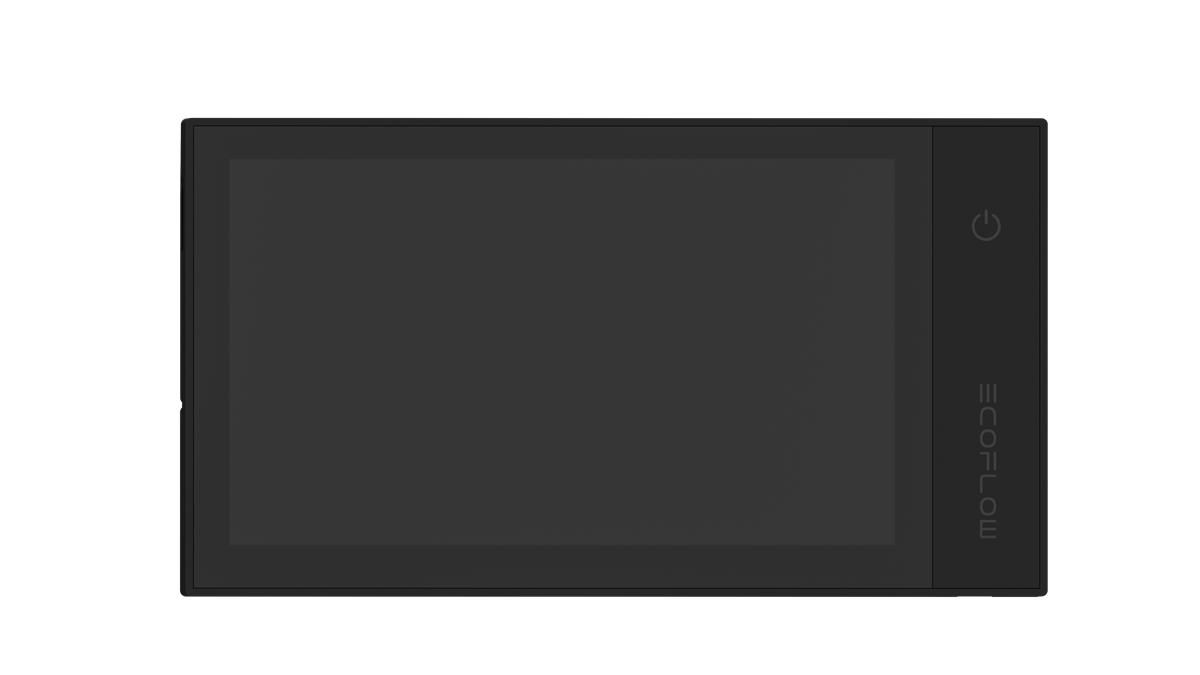

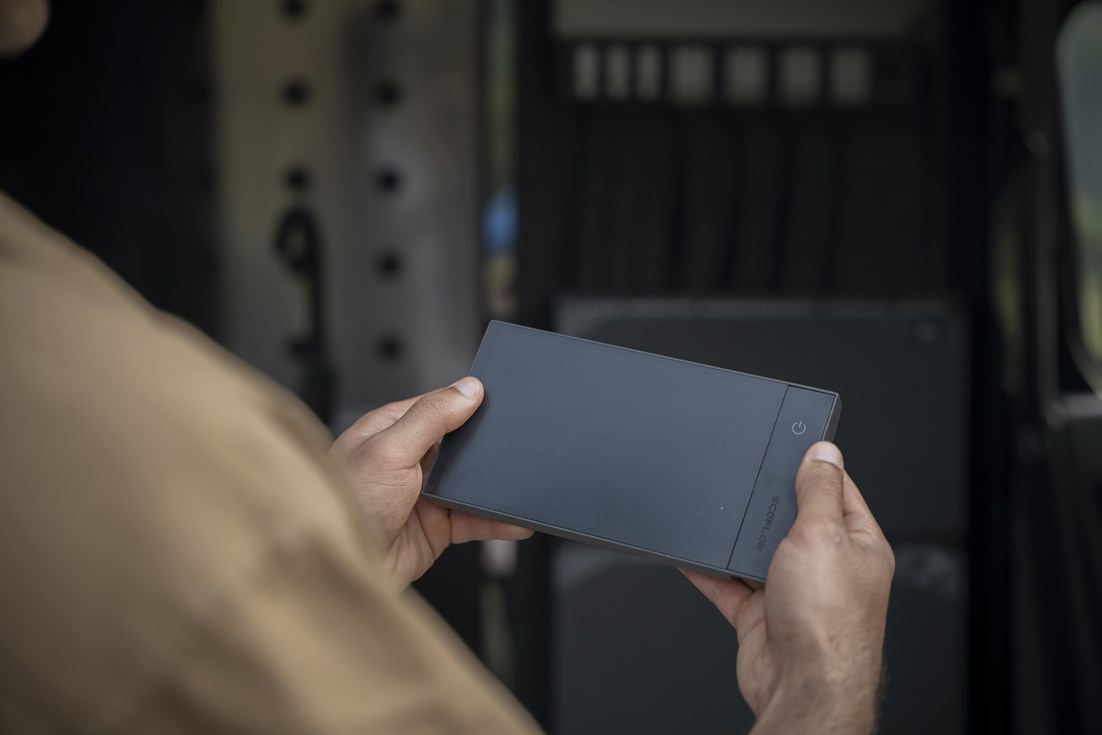

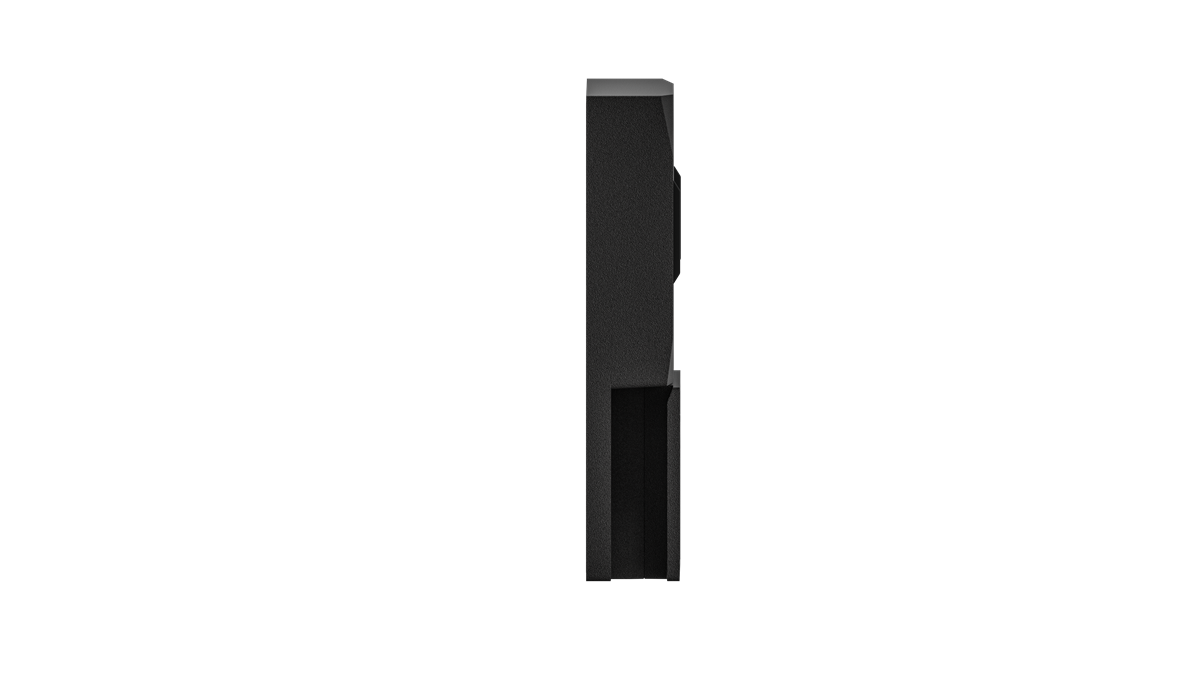

7-Inch (Diagonal) IPS Touch Screen
• RJ45 CAN Communication
• 12 VDC RJ45 Power Supply
• Quick-Mounting Design
• High Responsiveness & Processing Speed
• Intuitive System Control
• Dimension (HWD): 11.3cm x 20.5cm x 2.2cm
• Operating Temperature: -25°C to 60°C
• Net Weight: 0.45Kg
• CE, UL, FCC, UKCA, E-Mark, RCM, TELEC
KCC, ICES, EMC Class B
